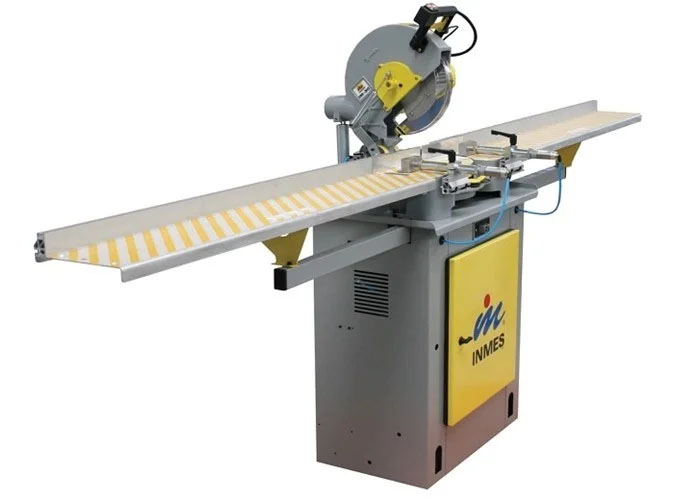

Mitre saw IM30 with pneumatic clamps

Mitre saw IM30 with pneumatic clamps
IM30 miter saw suitable for cutting mouldings at 45°, 90° and other angles.
The saw includes the diagramed plans, the base with aspirator, the connection pipe.

The saw is particularly suitable for cutting rods.
The motor is equipped with double bearings to have reduced vibrations, more accurate cuts, less noise.
The saw is able to quickly switch from a 45° cut to a 90° cut or other angles in between (60° for hexagonal frames, 22.5° for octagonal frames, etc.).
The position stop, sliding along the support bar, can be reversed while remaining in position.
The saw comes with a circular blade. Other spare blades are supplied by Rinaldin.

As an option, the automatic pressure system of the moulding against the support bar can be supplied separately.
34-page illustrated manual in English.

Technical features:
• 240 Volt single-phase motor
• Motor power: 1KW - 3400 rpm
• Maximum height of the moulding: 7.5 cm
• Maximum width of the moulding: 10 cm
• Blade diameter 30 cm (hole 30 mm)
• Automatic instant blade brake
• Motor equipped with double bearings for reduced vibrations, accurate cuts, less noise, less wear.
• Peak sound level: 99dB.
• Integral feed dust collection system, 15m³ / minute
• Ability to quickly switch from side to side cutting using a button.
• Flip-up sliding stop
• Adjustable pneumatic horizontal clamps. The compressor is not included and must be ordered separately.
• Pair of 124 cm plotted shelves. Additional 120 cm right extension available as an option.
• Dimensions: approximately 135 x 77 cm
• Weight: about 102 Kg
